Engineered Solutions for calibration of gas flow measurement devices

Mesa gas flow benches offer practical engineered solutions for calibration of gas flow measurement devices using Proven DryCal® technology. The Flow Benches are pre-configured for specific application, and are available in different configurations.

GET A QUOTE
Contact Mesa
gas-flow-benches-supporting-01

General Purpose Flow Bench, 5ccm – 5 SLPM

A gas flow delivery system used for calibrating rotameters, bubble meters, and flow calibrators.  This flow bench is designed for a maximum gas flow of 5 Liters per min. Requires customer connection to a gas source of approximately 100 psi. For use with the Met Lab Series.

Includes:

  • On-off valve
  • Precision pressure regulator
  • High side pressure gauge
  • Low flow needle valve
  • Low side pressure gauge
  • A/B valve
General-Purpose-Flow-Bench-5-500

General Purpose Flow Bench, 500 sccm – 50 SLPM

A gas flow delivery system used for calibrating rotameters, bubble meters, and flow calibrators. This flow bench is designed for a maxiumum gas flow of 50 Liters per min. Requires customer connection to a gas source of approximately 100 psi. For use with the Met Lab Series.

Includes:

  • On-off valve
  • Precision pressure regulator
  • High side pressure gauge
  • High flow needle valve
  • Low side pressure gauge
  • A/B valve

General Purpose Flow Bench, 500 sccm to 500 SLPM

A gas flow delivery system used for calibrating rotameters, bubble meters, and flow calibrators. Requires customer connection to a gas source of approximately 100 psi. For use with the DryCal 1020.

Includes:

  • Precision pressure regulator
  • High side pressure gauge
  • Needle valve for 500 sccm to 50 SLPM
  • A/B valve for needle valve outlet
  • Two sonic nozzles for flows from 50 to 500 SLPM with an A/B valve for sonic nozzle output
gas-flow-benches-main

MFC Flow Bench

A Gas Flow Delivery System used for calibrating Mass Flow Controllers (MFCs) where the exhaust of the MFC is at atmospheric pressure. This flow bench is designed for a maximum gas flow of 100 Liters per min. Requires customer connection to a gas source of approximately 100 psi. For use with the Met Lab Series.

Includes:

  • On-off valve
  • Precision pressure regulator
  • Pressure gauge
  • MFC mounting stand
gas-flow-benches-supporting-02

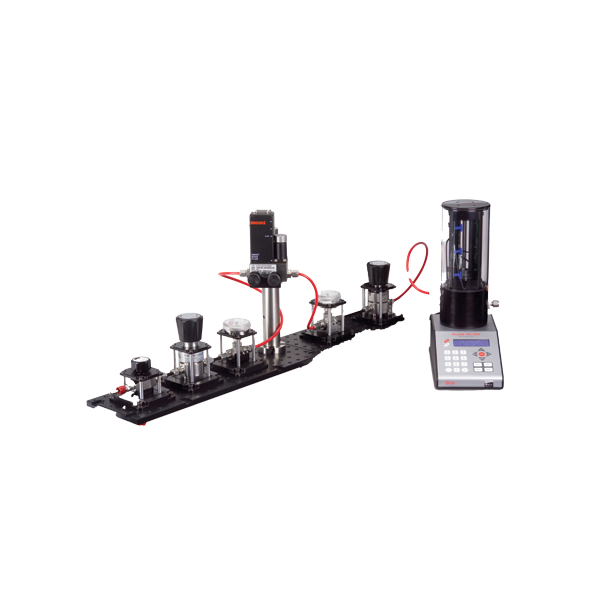

Back Pressure Module

This add-on module allows calibration of device under test (DUT) at back pressure of up to 60 PSI. Includes a Pressure gauge and a Back Pressure Regulator. Requires (100-025 or 100-030H/L). This flow bench is designed for a maximum gas flow of 50 Liters per min. For use with the Met Lab Series

Technical Specifications
Document Downloads

Technical Specifications

For technical specifications see the Gas Flow Benches Specifications Brochure

Document Downloads
